New Boat Launch Ramp to Open Soon

After probably 40-50 years of use, the Copper Cove Association has rebuilt much of the boat launch ramp. P.The reconstruction began February 17, 2018, early Saturday morning. But, contractors soon found it was a bigger job to repair. The ramp was probably only about 2-3 inches thick in certain places and the support structure below was eroded and was unable to support the extension. Additional work will begin this week to provide additional footings and structure. Thanks to the help our engineering and construction firm DRM Construction the project was completed on time and on budget. We appreciate CCA member Devin McGee whose company completed this job of great importance to our community.

The new ramp will be available in early May as the lake level rises.

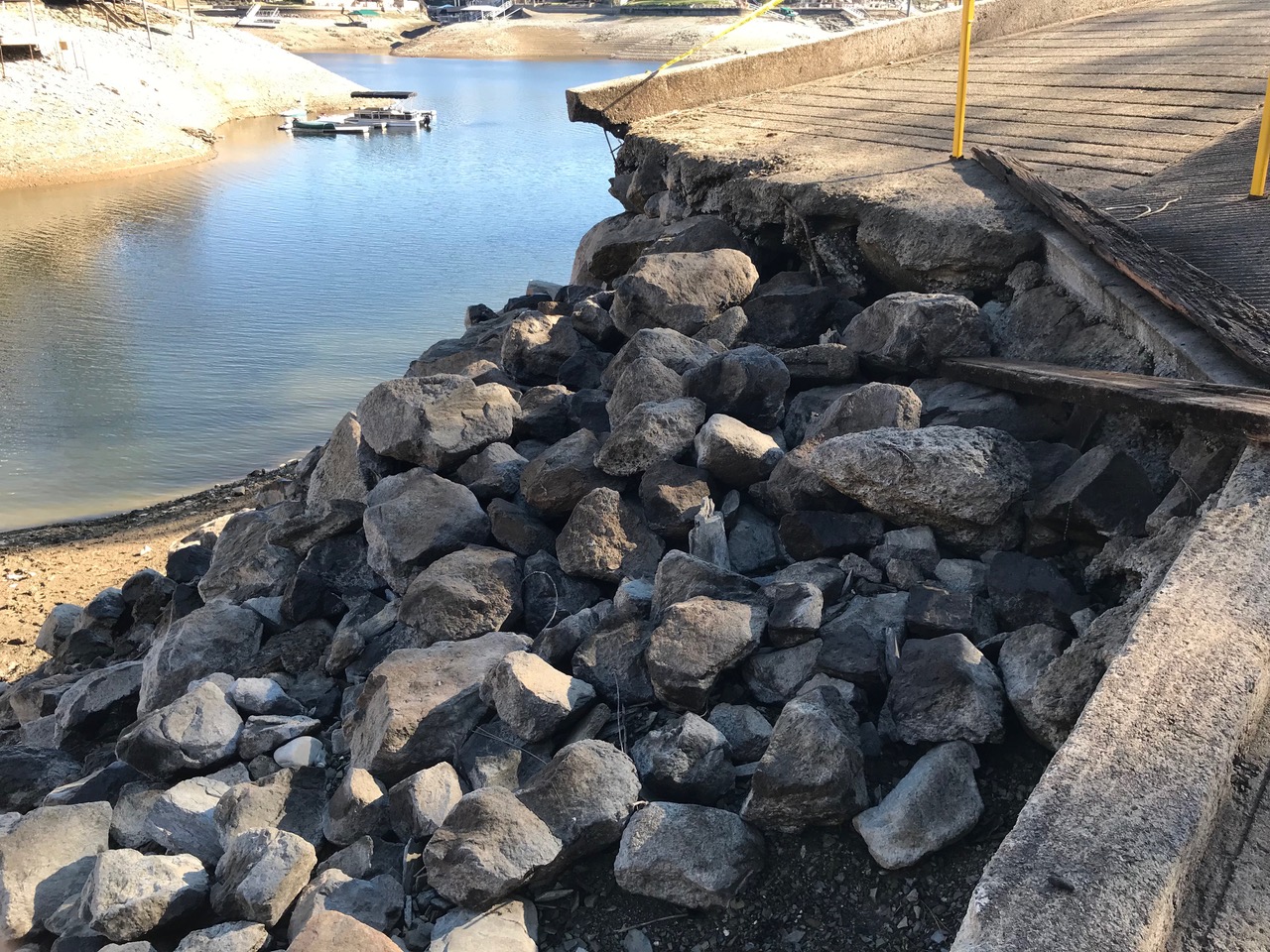

THE KIVA RAMP BEFORE CONSTRUCTION

This is a photo of the ramp prior to any construction. Over the decades, boulders have been dumped to reduce erosion. In order to extend the ramp 4 feet, all of the rocks had to be removed. Then a strong foundation could be built for the ramp extension.

Kiva Ramp Before Construction

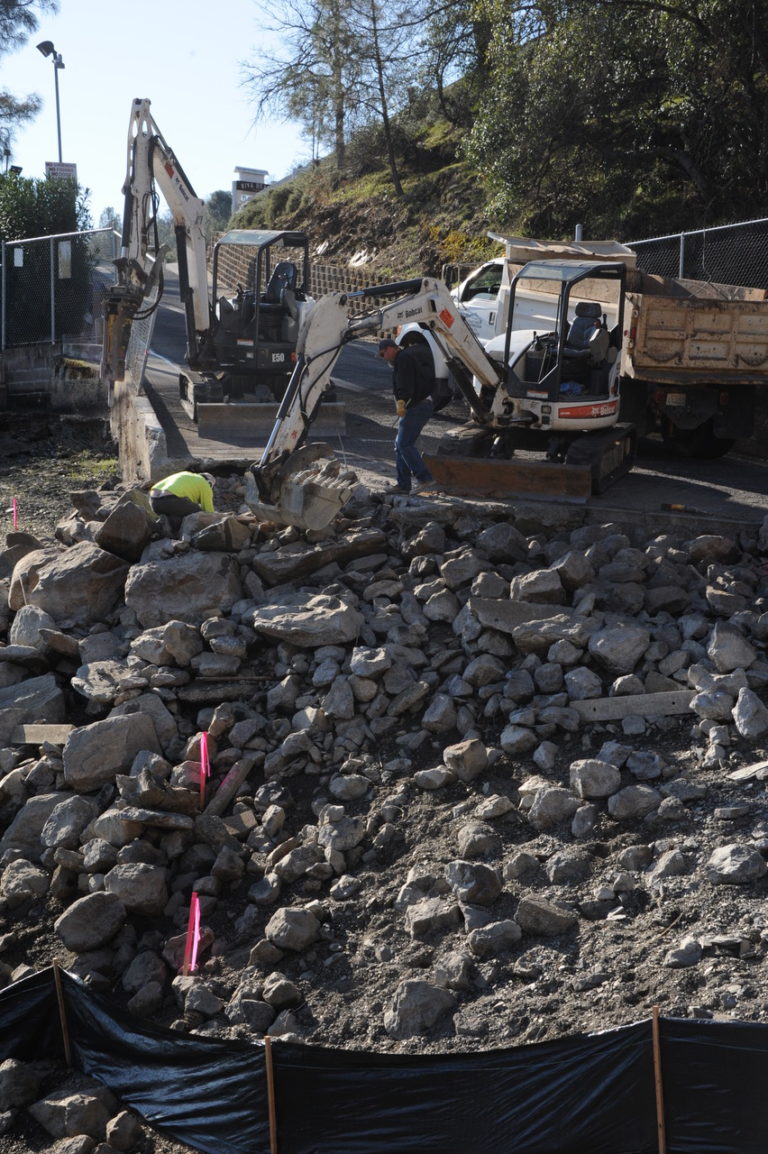

THE RECONSTRUCTION PROJECT BEGINS

The contractors here began removing all the rocks seen in photo #1. The concrete and rebar had to be saw cut so the new extension could be added.
The Reconstruction Project Begins

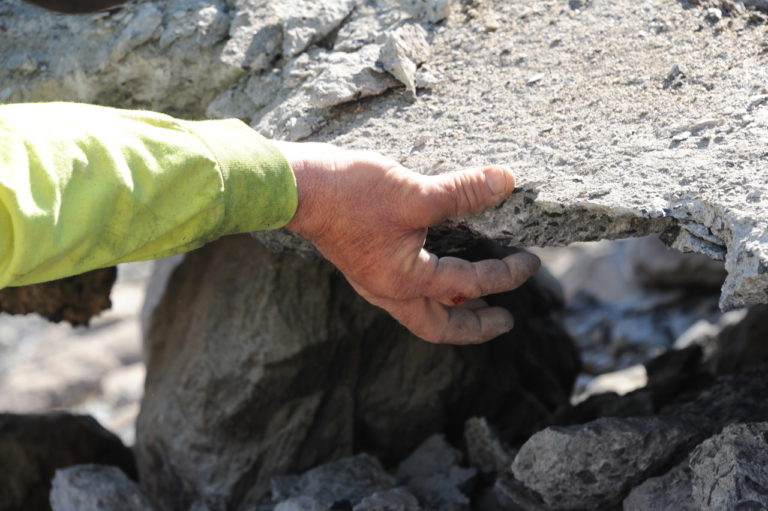

CONTRACTORS DISCOVER THE RAMP IS ABOUT 3 INCHES THICK

In the process of demolition, contractors found portions of the ramp were just 2-3 inches thick.
Contractors Discover The Ramp Is About 3 Inches Thick

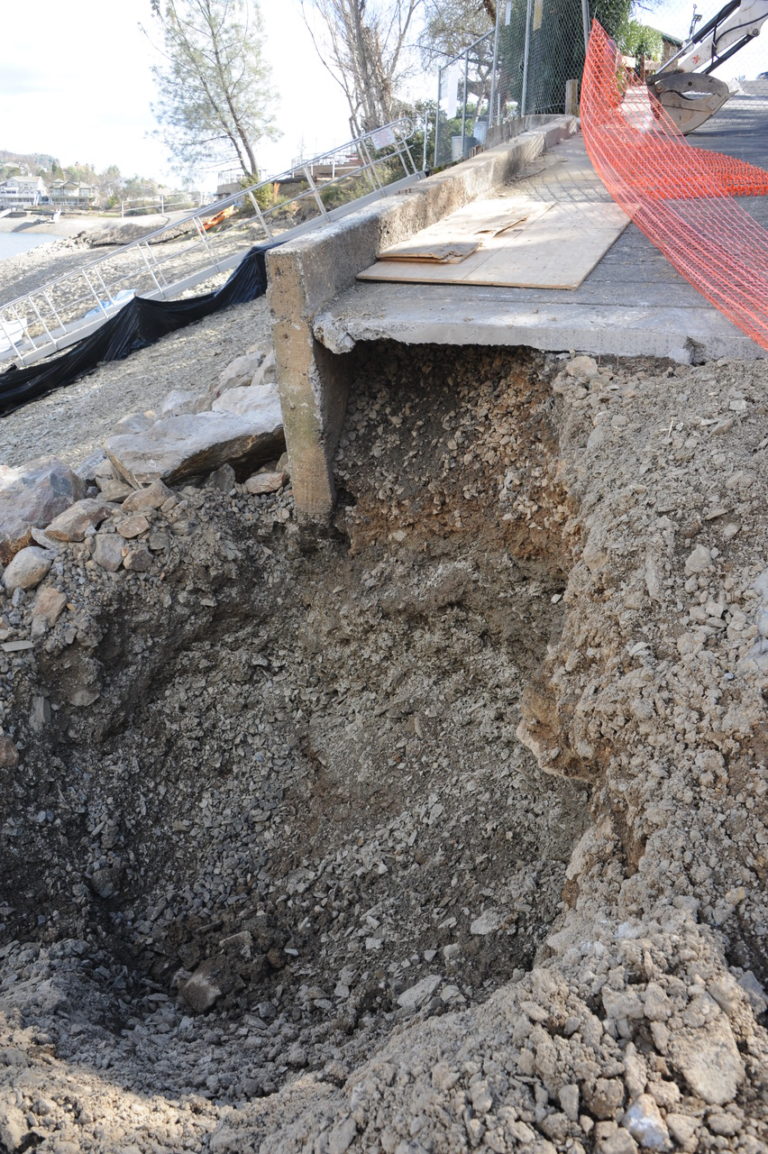

THE RAMP AFTER INITIAL CLEAN UP FOR RAMP EXTENSION CONSTRUCTION

After initial demolition and preparation of the ramp for the next phase, contractors discover that additional work needs to take place to provide a strong foundation for the ramp. New footings need to be installed to provide support for the new ramp above.
The Ramp After Initial Clean Up For Ramp Extension Construction

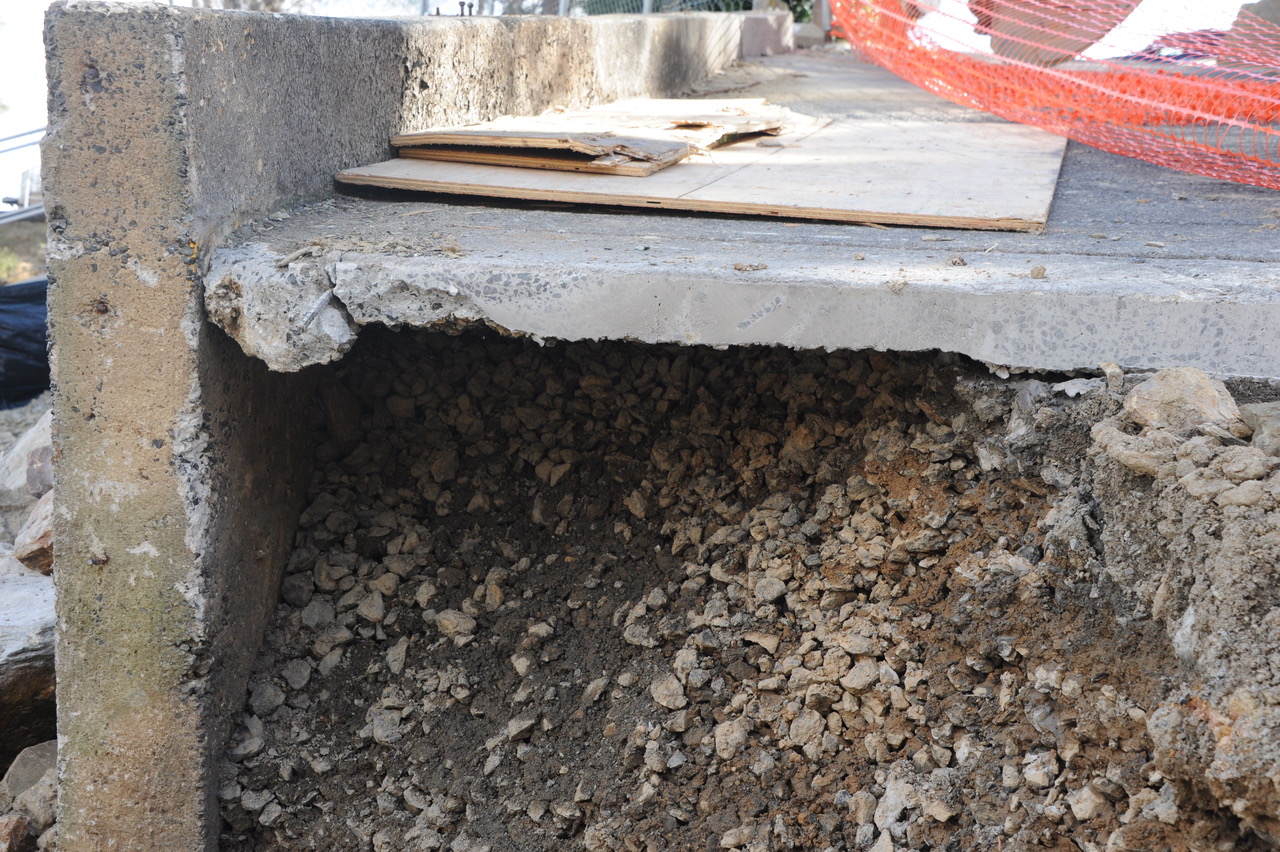

DEMOLITION COMPLETED

The old ramp section that was crumbling was removed. A careful concrete saw cut was made to provide a smooth transition to the new ramp extension, which will run much deeper into the lake.
Demolition Completed
